Muntin Drilling Machines

Muntin Drill Machine

For more information:
Download SRD Catalogue

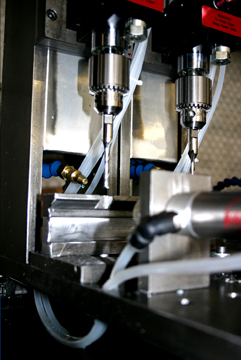

4 Headed Drilling Machine to process assembly holes for the Applied Muntin (machine capable of expanding to 6 drilling heads).

Center head fixed with remaining heads adjustable from 4.000” on center to 12” on center

self-centering rack

Interchangeable fixtures

Emergency shut-off button –

Individual on/off buttons for each drill head

Individual movement of each drill head position with scale for proper placement

Spray misters nozzles for each drill head

Pneumatic clamps to hold material during the drilling operation

Single foot pedal operation

Meet requirements for OSHA, including guards and operation procedures

Estimated Price $15,250.00


To get more information on this machine, please email us at machinery@srddesign.com
Multi Drill Video
• Click above image to see drill machine video
(Windows Media Format)
6.95 mb
